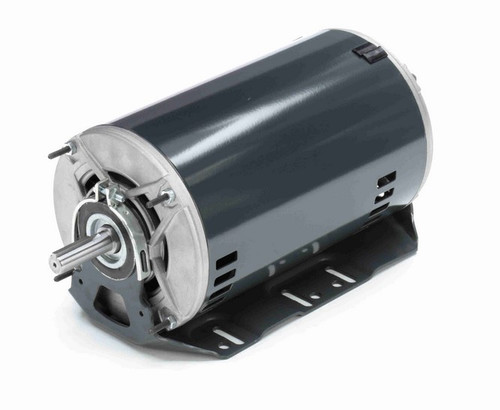

K1418 Marathon 2 hp 3 phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

K1418 Marathon 2 hp 3 Phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

This Marathon general-purpose motor delivers 2 horsepower with a 3-phase, 1800 RPM operation suitable for various industrial applications. It replaces Leeson A6T17DR48A, Century/AO Smith RB3204A, and Dayton 4LY71 motors, providing reliable performance in open drip proof (ODP) environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 6.2-6.0/3.0 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base mount for vibration reduction and ease of installation. It includes a service factor of 1.15 with automatic overload protection for enhanced durability. Wiring diagrams are conveniently located on the motor nameplate to assist with proper electrical connections.

Cross Reference

• Leeson A6T17DR48A, E113847.00, E113847
• Replaces Century/AO Smith RB3204A, 311P415
• Dayton 4LY71

Warranty

1 Year Manufacturer Warranty
