G144 Marathon 2 hp 3 phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

G144 Marathon 2 hp 3 Phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

This Marathon 2 horsepower, 3 phase motor is designed for general-purpose industrial applications requiring reliable performance. It is suitable for replacing similar 56 frame motors operating at 1800 RPM with voltage options of 208-230/460V.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 208-230/460V, 60 Hz
• Amperage: 6.3-6.2/3.1 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

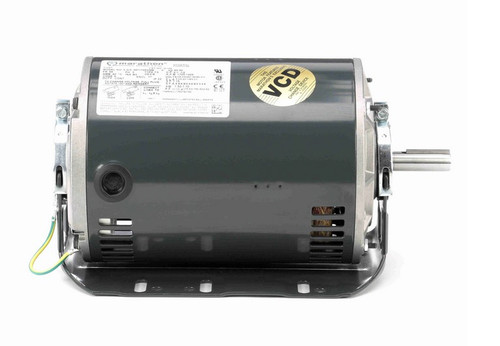

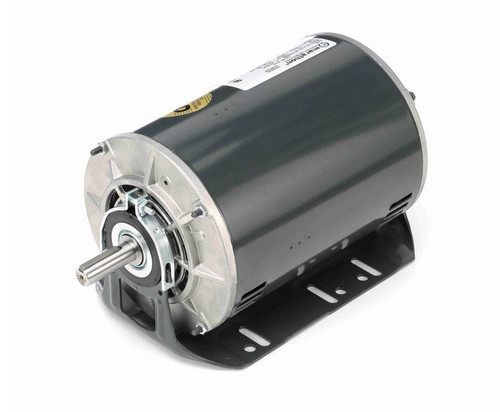

The motor features a resilient base mount for vibration isolation and ease of installation. It includes a voltage change device (VCD) for flexible wiring configurations, with the wiring diagram conveniently located on the motor nameplate. The motor is equipped with a service factor of 1.15 and automatic overload protection for enhanced durability in demanding environments.

Warranty

1 Year Manufacturer Warranty
