D315 Marathon 2 hp 3600 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

D315 Marathon 2 hp 3600 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

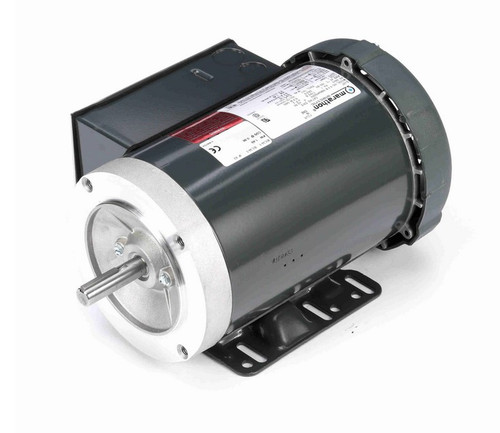

This Marathon general-purpose electric motor is designed for single-phase applications requiring a C-face mount. It is suitable for replacing or installing in equipment such as pumps or gear heads that need a reliable 2 hp motor with a totally enclosed fan-cooled design.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 16.6/9.4-8.3 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

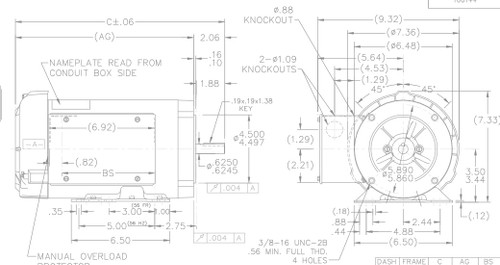

• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a capacitor start and capacitor run design for efficient single-phase operation. It includes a removable base and a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gear heads. A wiring diagram is provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
