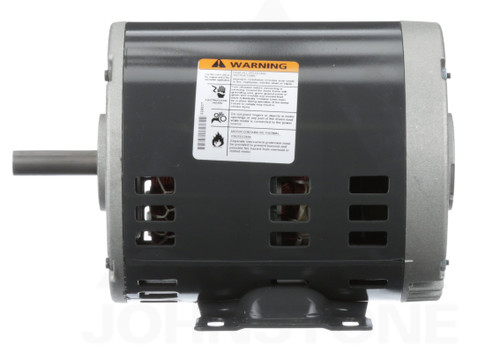

D2P1AH Nidec | 2 hp 3600 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
D2P1AH Nidec | 2 hp 3600 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor
$432.40
$386.52
SKU
D2P1AH
UPC
6.63E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230/460V
Horsepower
2 HP
RPM
3600
Phase
Three Phase
Frame
56H
Enclosure
ODP
Amperage
5.4/2.7 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
Duty
Continuous Duty
D2P1AH Nidec | 2 hp 3600 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor
This Nidec 2 hp electric motor is designed for general-purpose industrial applications requiring a reliable three-phase motor. It is suitable for continuous duty and can replace similar 56H frame motors in various equipment.
Key Specifications
- Horsepower: 2 hp
- RPM: 3600
- Voltage: 208-230/460V
- Amperage: 5.4/2.7 amps
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56H Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment

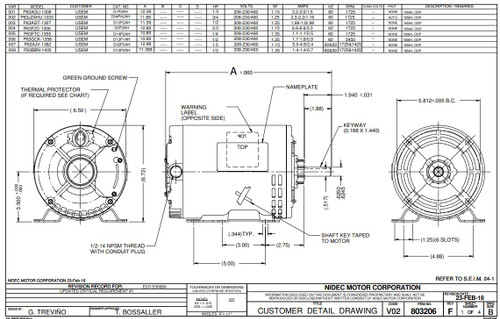

The motor features a rigid base mount for stable installation and includes Class B insulation suitable for operation in ambient temperatures up to 40°C. Wiring diagrams are provided on the motor nameplate for ease of connection. This premium efficient motor is designed without overload protection and has a service factor of 1.15.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
