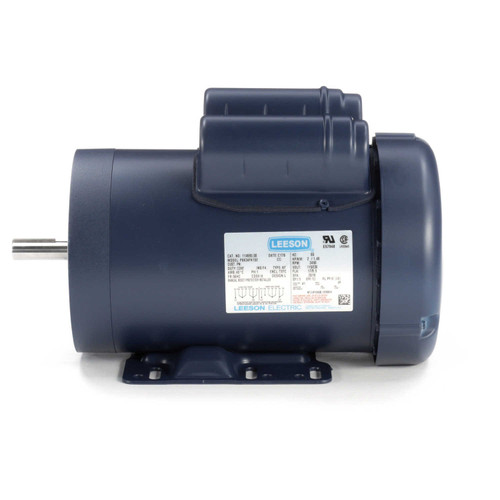

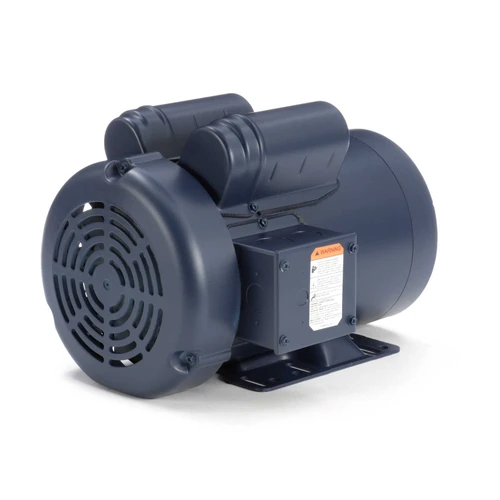

114995.00 Leeson | 2 hp 3600 RPM 56HC Frame TEFC C-Face- Rigid Base 115/230V

• 2 hp 3600 RPM, 17.0/8.5 amps 115/230 Volts 60hz. single Phase Motor
• NEMA 56HC Frame Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15 - overload protection = Manual
• Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

P6K34FK15E, 114995.00
Replaces Century B861, Leeson 115878.00, P6C34FK79F
