2203 Nidec 1 hp 1075 RPM 208-230/460V 6.5" Dia. (No Base) 1-Speed Enclosed Condenser Motor
2203 Nidec 1 hp 1075 RPM 208-230/460V 6.5" Dia. (No Base) 1-Speed Enclosed Condenser Motor
2203 Nidec 1 hp 1075 RPM 208-230/460V 6.5" Dia. (No Base) 1-Speed Enclosed Condenser Motor
2203 Nidec 1 hp 1075 RPM 208-230/460V 6.5" Dia. (No Base) 1-Speed Enclosed Condenser Motor

Nidec

2203 Nidec 1 hp 1075 RPM 208-230/460V 6.5" Dia. (No Base) 1-Speed Enclosed Condenser Motor

(No reviews) Write a Review
$632.50
$565.00
SKU 2203
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1 HP
RPM 1075
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 5.1/2.6 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
Adding to cart… The item has been added
Description
  • 1 hp 1075 RPM, 5.5-5.1/2.6 amps 208-230/460V Volts 60 Hz PSC Motor
  • NEMA 6.5" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 5" long
  • Service Factor = 1, Overload Protection: Auto
  • Hub/Stud Mount, Ball Bearings, Class B Insulation, Rev
  • 1 Year Manufacture Warranty

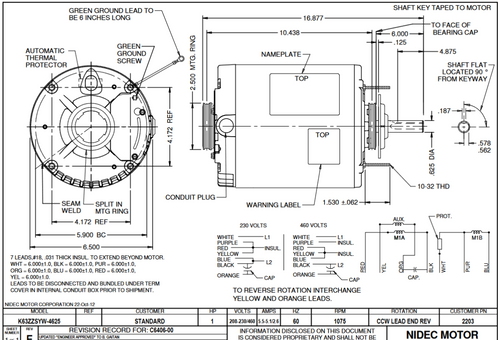

Replacement Condenser Fan Motor for certain brands. Wiring diagram on motor name plate. Enclosed, K063SYW4625012B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1 HP
RPM 1075
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 5.1/2.6 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
!
