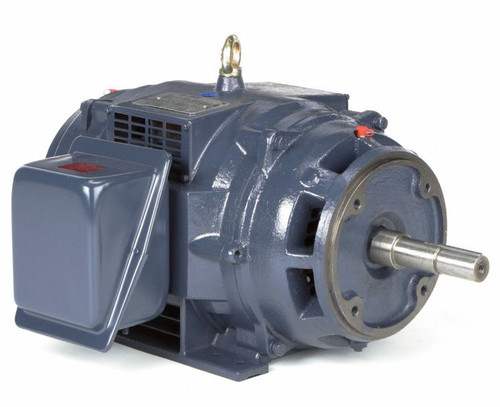

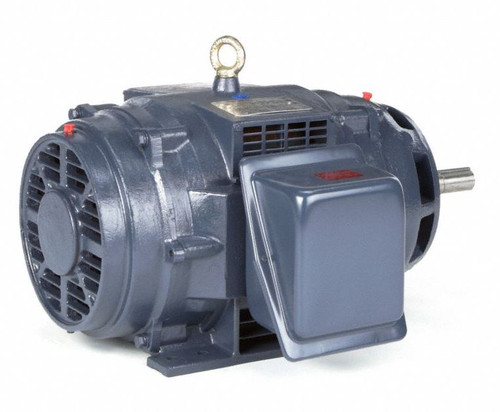

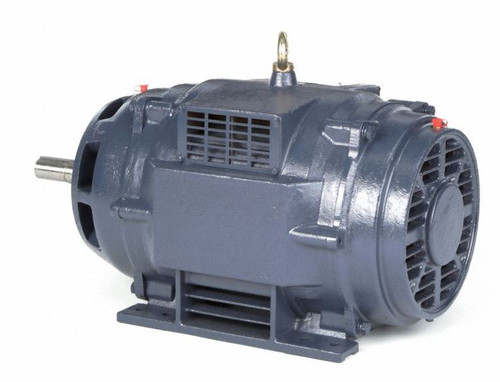

GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor
GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor

Marathon

GT0464 Marathon 25 hp 3600 RPM 256JM Frame ODP 230/460V Marathon Close Couple Motor

(No reviews) Write a Review
$3,032.21
$2,596.70
SKU GT0464
UPC 7.23E+11
Availability LIMITED STOCK
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 3600
Phase Three Phase
Frame 256JM
Enclosure ODP
Hertz 60 Hz
Amperage 59.5/29.7 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
Adding to cart… The item has been added
Description
  • 25 hp 3600 RPM 256JM Frame, 59.5/29.7 amps 230/460V 60hz. Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; No Overload Protection
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

256TTDBD6007 Replaces Model 199967.00, 199967, B199967.00, B199967; Dayton 26ZY14

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 3600
Phase Three Phase
Frame 256JM
Enclosure ODP
Hertz 60 Hz
Amperage 59.5/29.7 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
!
