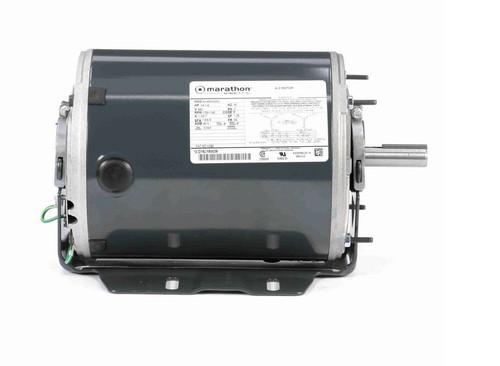

K280 Marathon 3/4 -1/4 hp 3 phase 1800/1200 RPM 56 Frame 460V ODP Resilient Mount Marathon Motor

K280 Marathon 3/4 - 1/4 hp 3 Phase 1800/1200 RPM 56 Frame 460V ODP Resilient Mount Marathon Motor

This Marathon motor is a versatile, general-purpose 3-phase motor designed for applications requiring dual-speed operation. It replaces similar NEMA 56 frame motors and is suitable for various industrial and HVAC uses.

Key Specifications

• Horsepower: 3/4 - 1/4 hp
• RPM: 1800 / 1200
• Voltage: 460 V
• Amperage: 1.3 / 0.7 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base mount for vibration reduction and ease of installation. It includes a dual-speed design with a service factor of 1.25 but does not have built-in overload protection. The motor is equipped with Class B insulation and a wiring diagram located on the nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
