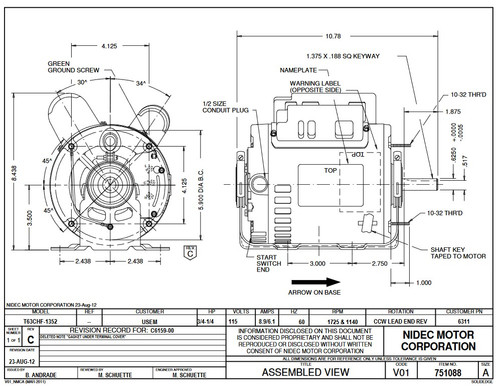

6311 Nidec | 3/4 hp 1725/1140 RPM 2-Speed 115V; 6.5" Blower Motor

6311 Nidec | 3/4 hp 1725/1140 RPM 2-Speed 115V; 6.5" Blower Motor

This 3/4 horsepower, two-speed blower motor by Nidec is designed for HVAC applications requiring reliable airflow control. It replaces standard 3/4 hp motors with dual-speed operation, suitable for systems operating at 1725 or 1140 RPM.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725/1140 (2-Speed)
• Voltage: 115V
• Amperage: 8.9/6.1 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: NEMA 56 Frame; 6.5" Diameter
• Shaft Dimensions: 5/8" diameter x 1.88" length; Shaft Height 3.5"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base mount for stable installation and includes a capacitor for capacitor start operation. The motor case length measures 8.75", and it is designed for use in ambient temperatures up to 40°C at 60 Hz. Note that this motor does not include thermal protection.

Warranty

1 Year Manufacturer Warranty
