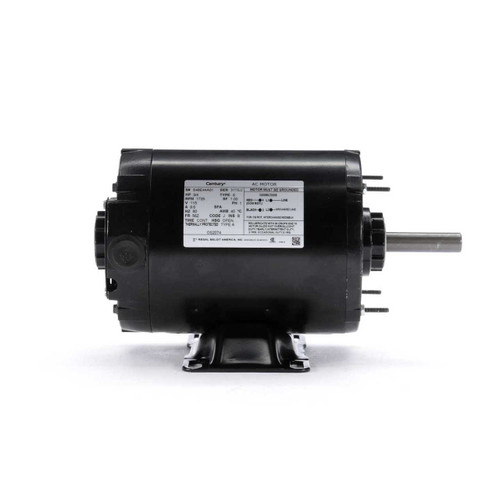

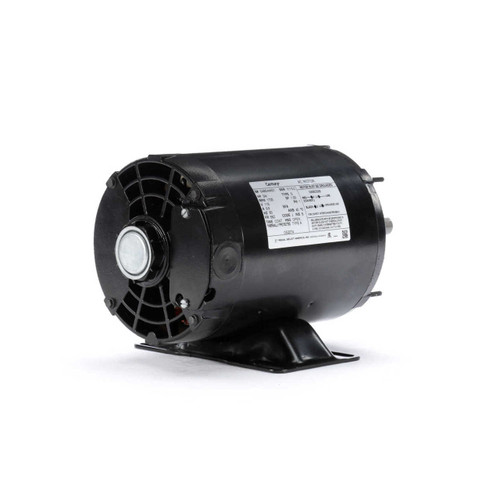

OS2074 Century 3/4 hp 1725 RPM 56Z Frame 115V Split Phase Rigid Base Motor Century # OS2074

OS2074 Century 3/4 hp 1725 RPM 56Z Frame 115V Split Phase Rigid Base Motor

This Century OS2074 motor is a 3/4 horsepower, 1725 RPM, 115V split phase motor designed for use in centrifugal pumps, blowers, and fans. It serves as a reliable replacement for Century and Dayton 4UU11 motors with a 56Z frame and rigid base mounting.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115 V
• Amperage: 9.6 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 56Z
• Shaft Dimensions: 5/8" diameter x 2.37" length with keyway
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a 1.0 service factor and Class B insulation for reliable performance. It includes automatic overload protection and extended thru bolts on the shaft end for secure mounting. The overall length with shaft is 11.1 inches, making it suitable for direct replacement in compatible equipment.

Warranty

1 Year Manufacturer Warranty
