G840 Marathon 3/4 hp 1800 RPM 3-Phase 56C Frame TEFC (no base) 208-230/460V Marathon Motor

G840 Marathon 3/4 hp 1800 RPM 3-Phase 56C Frame TEFC (no base) 208-230/460V Marathon Motor

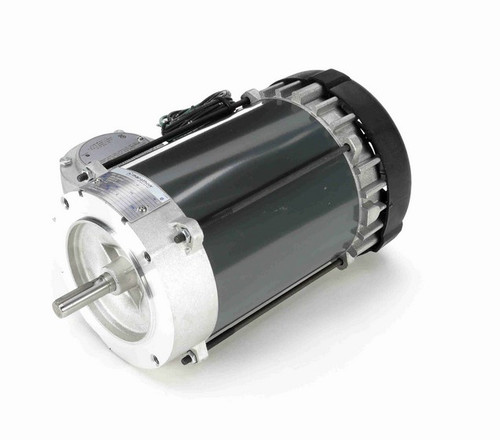

This Marathon 3-phase electric motor delivers reliable 3/4 horsepower performance at 1800 RPM, designed for industrial applications requiring a durable, explosion-proof motor. It is ideal for replacing or upgrading motors in pumps, gear heads, and other machinery requiring a NEMA 56C frame with a C-face mount.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 2.9-3.0/1.5 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

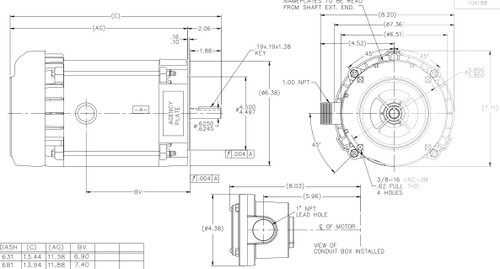

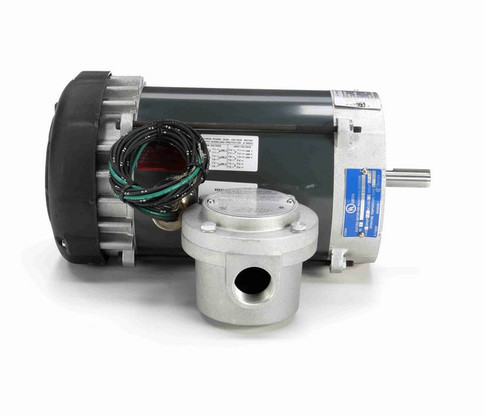

This motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gear heads. The shaft includes a keyway for secure coupling. It comes without a base and includes a wiring diagram on the nameplate for straightforward electrical connections. The motor is equipped with automatic overload protection and Class B insulation for enhanced durability in demanding environments.

Warranty

1 Year Manufacturer Warranty
