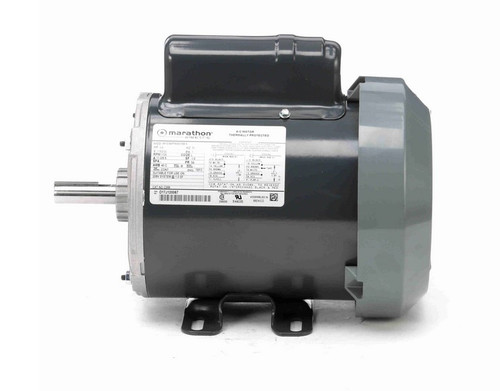

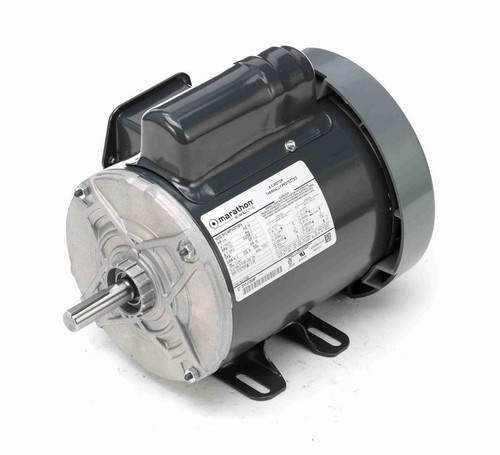

C269 Marathon 3/4 hp 1800 RPM 56 Frame 115/230V Totally Enclosed Marathon Electric Motor

SKU:: C269
UPC:
Weight:: 31.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 16.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/230V
Horsepower:: 3/4 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 11.0/5.5 Amps
Bearings:: Ball Bearings
Service Factor:: 1.0
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

Was: $594.90

Now: $499.95

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

C269 Marathon 3/4 hp 1800 RPM 56 Frame 115/230V Totally Enclosed Marathon Electric Motor

This Marathon 3/4 horsepower, 1800 RPM single-phase electric motor is designed for general-purpose applications and replaces Leeson A6C17FB4L (110017.00). It features a totally enclosed fan-cooled (TEFC) design suitable for various industrial and HVAC uses.

Key Specifications

Horsepower: 3/4 hp
RPM: 1800
Voltage: 115/230 V
Amperage: 11.0/5.5 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)

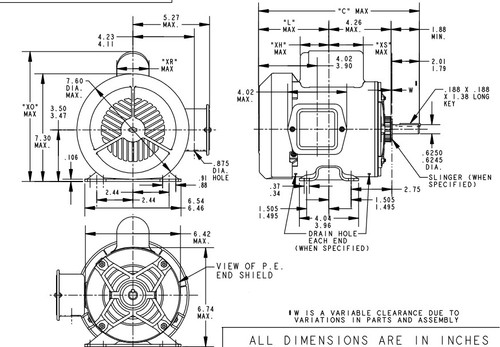

Frame / Diameter: NEMA 56 Frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This capacitor start motor includes a rigid base mount for stable installation and features Class B insulation for reliable operation. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. The motor also offers automatic overload protection and a service factor of 1.0 for enhanced durability.
