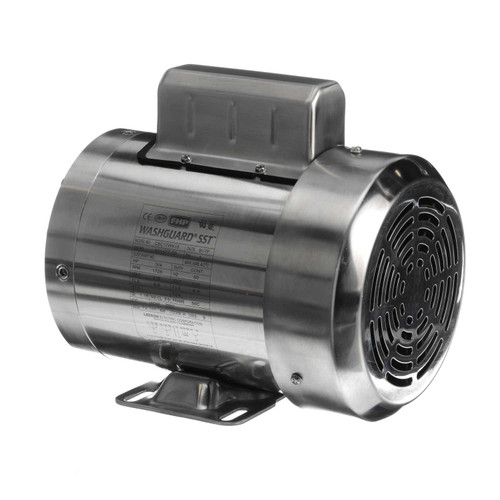

191477.00 Leeson | 3/4 hp 1800 RPM 56C 115/230V, TEFC Stainless Steel w/Base

191477.00 Leeson | 3/4 hp 1800 RPM 56C 115/230V, TEFC Stainless Steel w/Base

This Leeson 3/4 horsepower motor operates at 1800 RPM and is designed for versatile industrial applications. It replaces Marathon N343 and 56C17WD5328 models, featuring a durable stainless steel exterior suitable for demanding environments.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/230V
• Amperage: 9.8/4.9 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Double sealed bearings

Product Features & Fitment

This motor includes a rigid base mount for secure installation and features a 300-series stainless steel construction on all exterior components for enhanced corrosion resistance. The motor frame has a laser-etched full-fact nameplate and four quadrant drain locations in each endbell to facilitate moisture drainage and maintenance.

Cross Reference

• Marathon N343, 056C17WD5328

Warranty

1 Year Manufacturer Warranty
