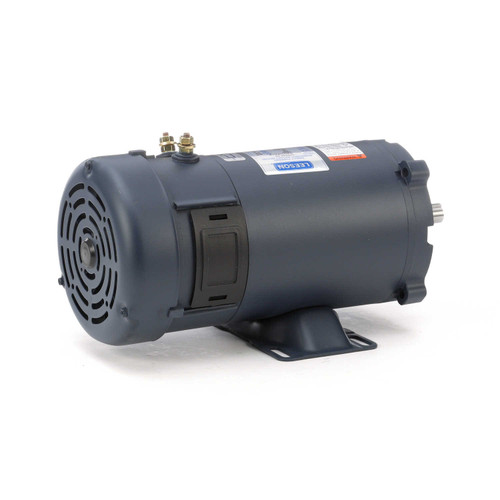

108048.00 Leeson | 3/4 hp 1800 RPM 56C Frame 12 Volts DC TEFC

108048.00 Leeson | 3/4 hp 1800 RPM 56C Frame 12 Volts DC TEFC Motor

This 3/4 horsepower, 1800 RPM permanent magnet DC motor by Leeson is designed for low voltage applications such as battery or solar-powered systems. It serves as a direct replacement for the Dayton 6ML04 motor and is suitable for heavy load operations requiring high starting torque.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 12 Volts DC
• Amperage: 58.0 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. It offers linear speed and torque characteristics across the entire speed range and supports dynamic braking for faster stops. The reversible motor has a simple two-lead connection and is compatible with Leeson speed control model 175291.

Cross Reference

• Dayton 6ML04 (The Dayton is actually made by Leeson Electric). Can use with Leeson speed control 175291
• C4D17FK7G, 108048.00

Warranty

1 Year Manufacturer Warranty
