113019.00 Leeson | 3/4 hp 1800 RPM 56C Frame TENV (no base) C-Face 208-230/460V Wash Down Duty

SKU:: 113019
UPC:
Weight:: 31.00 LBS
Width:: 15.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208/230/460V
Horsepower:: 3/4 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 56C
Enclosure:: TENV
Hertz:: 60 Hz
Amperage:: 2.5/1.3 Amps
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: C-Face

Current Stock:

Was: $700.00

Now: $647.00

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

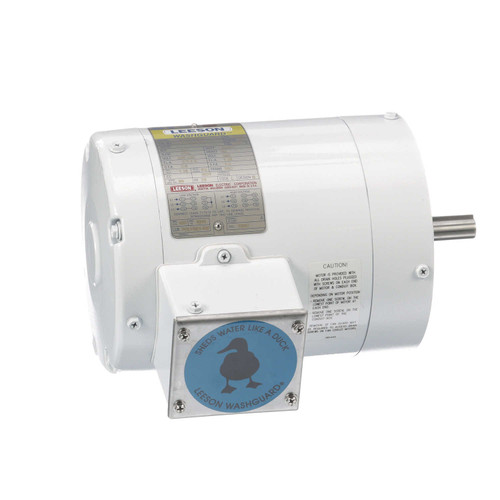

113019.00 Leeson 3/4 hp 1800 RPM 56C Frame TENV Wash Down Duty Motor

This Leeson 3/4 hp, 1800 RPM three-phase motor is designed for wash down duty applications and replaces Marathon N644, 56T17V5329 models. It features a durable, moisture-resistant construction ideal for harsh environments requiring reliable performance.

Key Specifications

Horsepower: 3/4 hp
RPM: 1800
Voltage: 208-230/460V
Amperage: 2.5/1.3 amps
Enclosure: Totally Enclosed Non Vented (TENV)
Frame / Diameter: NEMA 56C Frame
Shaft Dimensions: 5/8" Diameter x 1 7/8" Length

Product Features & Fitment

This motor features Leeson's Washguard design with a round body and no base, facilitating flexible mounting options. It includes a keyed shaft and stainless steel components such as the shaft, conduit box cover, nameplate, and fan guard for enhanced corrosion resistance. Moisture protection is enhanced by special gaskets, slingers, seals, four endshield drains, and the IRIS insulation system, making it suitable for wash down environments.
