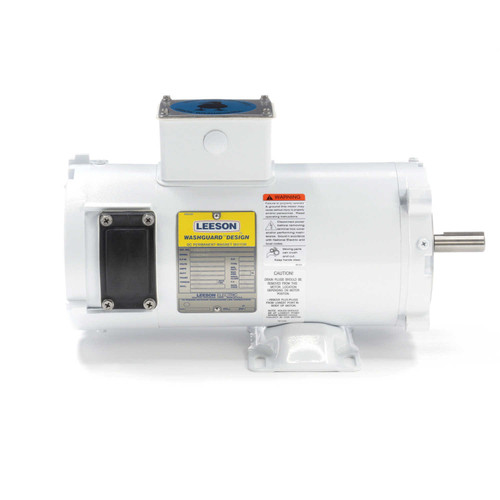

108229.00 Leeson | 3/4 hp 1800 RPM 56C TENV Frame 180 volts DC Wash Down Duty

Leeson

108229.00 Leeson | 3/4 hp 1800 RPM 56C TENV Frame 180 volts DC Wash Down Duty

(No reviews) Write a Review

$1,081.00

$916.44

SKU 108229.00

UPC 6.92E+11

Shipping Free Shipping

Compliance Tab /content/product_tabs/p65warnings.html

ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM

Voltage 180V

Horsepower 3/4 HP

RPM 1800

Frame 180

Enclosure TENV

Amperage 3.7 Amps

Service Factor 1.0

Insulation Class Class F

Mounting Rigid Base

Current Stock:

Qty

Adding to cart… The item has been added

Description
Specifications

Description

3/4 hp 1800 RPM, 3.7 amps, 180 Volts DC
NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
Leeson Washguard Motor - Removable Rigid Base
Service Factor: 1.0
overload protection = None
Class F Insulation
TENV = Totally Enclosed Non Ventilated
1 Year Manufacture Warranty

Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. Can use with Leeson speed control 174102, 174107, 174307.

C4D17VK4F, 108229.00

Specifications

Compliance Tab	/content/product_tabs/p65warnings.html
ON SALE	DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage	180V
Horsepower	3/4 HP
RPM	1800
Frame	180
Enclosure	TENV
Amperage	3.7 Amps
Service Factor	1.0
Insulation Class	Class F
Mounting	Rigid Base
