sale
Nidec

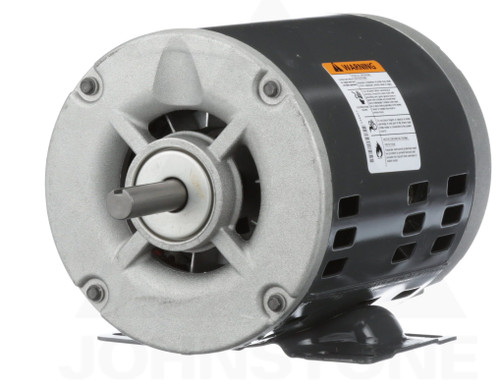

D34P1B Nidec | 3/4 hp 3600 RPM 48 Frame 230/460V Open Drip Nidec Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
D34P1B Nidec | 3/4 hp 3600 RPM 48 Frame 230/460V Open Drip Nidec Electric Motor
$324.30
$289.46
SKU
D34P1B
UPC
6.63E+11
Availability
Subject to availability
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
3/4 HP
RPM
3600
Phase
Three Phase
Frame
48
Enclosure
ODP
Amperage
2.4/1.2 Amps
Bearings
Ball Bearings
Service Factor
1.25
Insulation Class
Class B
Mounting
Rigid Base
Duty
Continuous Duty
- 3/4 hp 3600 RPM, 2.4/1.2 amps 230/460 Volts Three Phase Motor
- NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 7/8"
- ODP; Service Factor: 1.25, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
P055BZK1593015B
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 3/4 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 48 |
| Enclosure | ODP |
| Amperage | 2.4/1.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.25 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
| Duty | Continuous Duty |
