G238A Marathon 3/4 hp 3600 RPM 56C Frame ODP (no base) 115/230V Marathon Electric Motor

G238A Marathon 3/4 hp 3600 RPM 56C Frame ODP (no base) 115/230V Marathon Electric Motor

This Marathon 3/4 horsepower, 3600 RPM single-phase electric motor is designed for general-purpose applications requiring a NEMA 56C frame with a C-face mount. It replaces Leeson models E100357.00 and E100357, providing reliable performance in various industrial settings.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 3600
• Voltage: 115/230 V
• Amperage: 7.2/3.6 A
• Enclosure: Open Drip Proof (ODP)

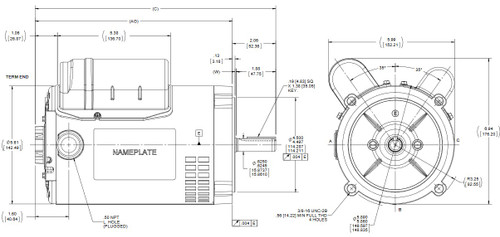

• Frame / Diameter: NEMA 56C frame, C-face
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and capacitor run design with a service factor of 1.25 and Class B insulation. It includes a keyed shaft and four threaded bolt holes spaced 5 7/8" on center across the shaft for mounting pumps or gear heads. The motor does not include a base and comes with a wiring diagram on the nameplate for easy installation.

Cross Reference

• Leeson E100357.00, E100357

Warranty

1 Year Manufacturer Warranty
