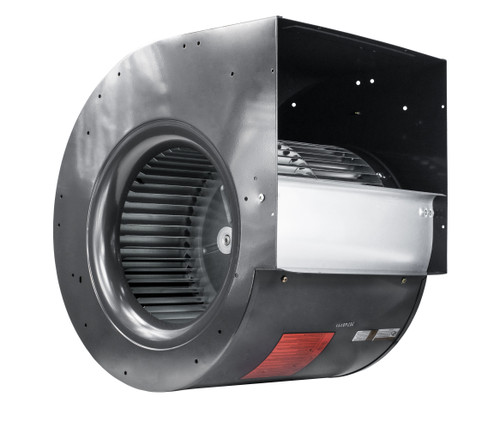

3/4 hp 4-Speed 115V Dayton 1XJY2 Direct OEM Interchange Furnace Blower with Housing Assembly & Motor

3/4 hp 4-Speed 115V Dayton 1XJY2 Direct OEM Interchange Furnace Blower with Housing Assembly & Motor

This direct OEM aftermarket replacement blower assembly is designed to fit Dayton 1XJY2 models, providing reliable performance for heating, air conditioning, and ventilation systems. It includes the motor, blower housing, and blower wheel, making it an ideal solution for new installations or replacements.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1100
• Voltage: 115 Volts
• Amperage: 9.0 amps
• Enclosure: Open Ventilated PSC Electric Motor

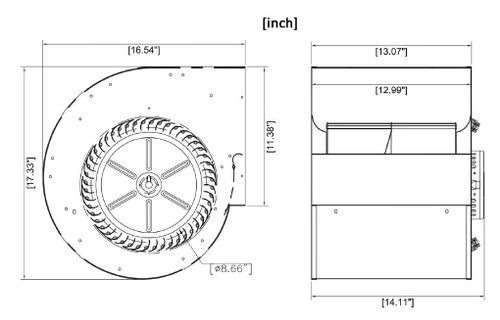

• Frame / Diameter: 11" Wheel Diameter
• Rotation: Discharge can be rotated in four 90-degree increments (non-reversible)
• Bearings: Ball Bearing

Product Features & Fitment

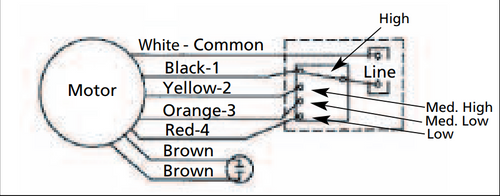

This furnace blower features a 4-speed motor (High, Medium-High, Medium-Low, Low) with automatic overload protection and insulation class B. The heavy-gauge steel housing is painted for durability, and the steel blower wheel has a corrosion-resistant finish. The blower does not include a power cord or on/off switch and is not recommended for speed control.

Installation is straightforward as the assembly is made to precisely fit the specified Dayton model. It is recommended to have a certified technician perform installation and to ensure power is turned off before replacing any electrical components. Housing supports are available separately.

Warranty

1 Year Manufacturer Warranty
