6B40-SD Pulley | 4.35" OD Six Groove "A/B" Pulley / Sheave (bushing not included)
6B40-SD Pulley | 4.35" OD Six Groove "A/B" Pulley / Sheave (bushing not included)
6B40-SD Pulley | 4.35" OD Six Groove "A/B" Pulley / Sheave (bushing not included)
6B40-SD Pulley | 4.35" OD Six Groove "A/B" Pulley / Sheave (bushing not included)

Leeson/AMEC

6B40-SD Pulley | 4.35" OD Six Groove "A/B" Pulley / Sheave (bushing not included)

(No reviews) Write a Review
$94.82
$85.34
SKU 6B40-SD
UPC 6.63E+11
Shipping Free Shipping
Pulley Type Bushing Type
Belt Section A/B
Grooves 6
Bore Size Bushing Required
Pitch Diameter 3" - 5"
Material Cast Iron
Adding to cart… The item has been added
Description
  • Pitch Dia. A = 3.60"; Pitch Dia. B = 4.00"
  • Six Groove Cast Iron Pulley
  • Use with A, 4L & B, 5L V-Belts; Made in China
  • Requires "SD" Style Bushing
  • Uses QTL Quick Detachable Taper Bushings

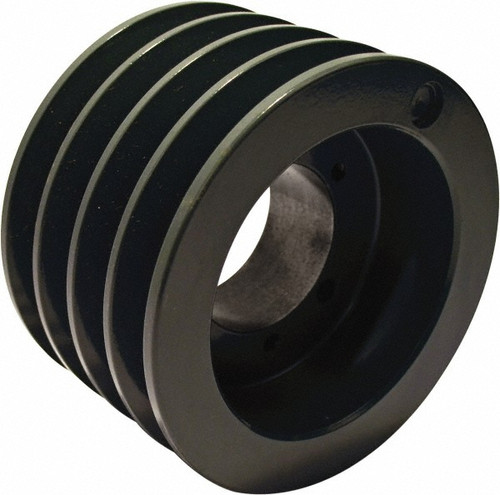

    • Contact Electric Motor Warehouse for assistance to select correct bushing. The pulley depicted in the photo is a general representation, and the diameter may differ based on the size selected.
    Based on diameter, pulley maybe solid or spoked to reduce weight.

Warranty Information
Specifications
Pulley Type Bushing Type
Belt Section A/B
Grooves 6
Bore Size Bushing Required
Pitch Diameter 3" - 5"
Material Cast Iron
!
