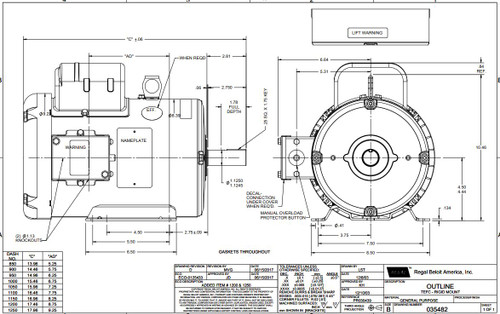

131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.
131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.
131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.
131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.
131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.
131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.
131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.
131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.

Leeson

131601.00 Leeson | 3 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.

(No reviews) Write a Review
$1,572.05
$1,152.19
SKU 131601
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 220V
Horsepower 3 HP
RPM 1440
Frame 184T
Enclosure TEFC
Hertz 50 Hz
Amperage 15.9 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 1440 RPM, 15.9 amps, 220V 50 hz. (will not operate @ 60hz)
  • NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.0 - overload protection = Manual
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • TEFC - Totally Enclosed Fan Cooled
  • 1 Year Manufacture Warranty

This motor is rated for 50 hz. Power systems and will not operate on 60 hz. Operation on 60 hz. Will damage the motor.

P184C14FB7C, 131601.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 220V
Horsepower 3 HP
RPM 1440
Frame 184T
Enclosure TEFC
Hertz 50 Hz
Amperage 15.9 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
