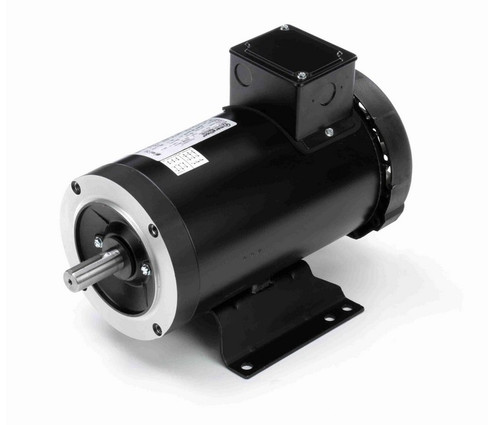

Y370 Marathon 3 hp 1800 RPM 3-Phase 182TC Frame TEFC (rigid base) 230/460V Marathon Motor

Y370 Marathon 3 hp 1800 RPM 3-Phase 182TC Frame TEFC (rigid base) 230/460V Marathon Motor

This Marathon 3 hp, 1800 RPM, 3-phase electric motor is designed for industrial applications requiring reliable, inverter-duty performance. It replaces standard motors with a NEMA 182TC frame and is suitable for driving pumps, gearheads, and other machinery.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 8.4/4.2 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 182TC frame with 145TC shaft
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base with a C-face mount and includes four threaded bolt holes spaced 5 7/8" on center across the shaft for easy attachment of pumps or gearheads. It is inverter (vector) duty rated with a 1000:1 constant torque rating and includes a keyed shaft for secure coupling. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
