CP1302L Century 3 HP 3450 RPM 56 Frame 208-230V Air Compressor Motor

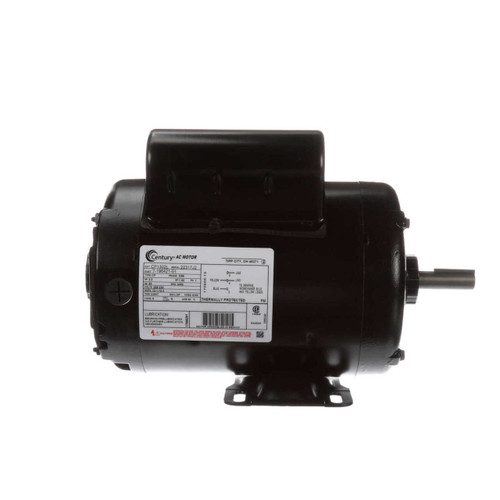

This Century CP1302L motor is a 3 HP, 3450 RPM replacement designed for small home and shop air compressors. It is intended for use with belt-driven compressors and is not suitable where the motor is integrated into the compressor head.

Key Specifications

• Horsepower: 3 HP
• RPM: 3450
• Voltage: 208-230V, 60 Hz
• Amperage: 13.1/12.3 A
• Enclosure: Open Drip Proof
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

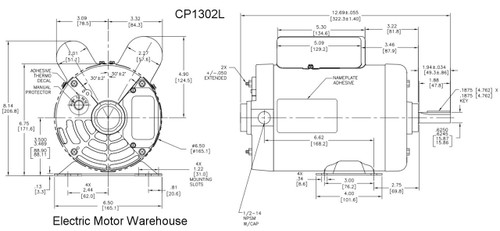

The motor features a flat rigid base mount with a standard 3" x 5" bolt pattern and a total length of 12.59". It includes manual overload protection and a service factor of 1.0. This capacitor start/capacitor run motor is not compatible with pivot-type mounts and includes a motor connection diagram on the nameplate for easy wiring.
