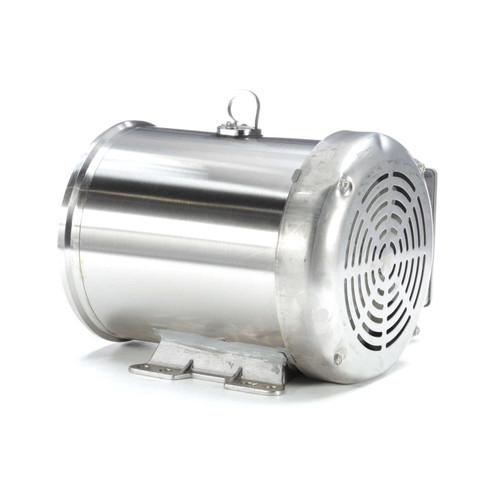

132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel
132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel

Leeson

132203.00 Leeson | 3 hp 3600 RPM 182TC Frame 230/460V Stainless Steel

(No reviews) Write a Review
$2,073.45
$1,577.23
SKU 132203
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 182TC
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 7.6/3.8 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 182TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Leeson Washguard Motor - Rigid Base - Premium Efficient
  • Service Factor: 1.25 - overload protection = None - Class F Insulation
  • 1 Year Manufacture Warranty

Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.

CZ182T34WK2A, 132203.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 182TC
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
