sale
Leeson

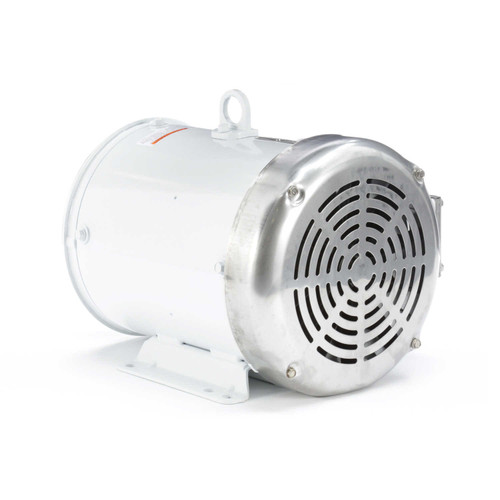

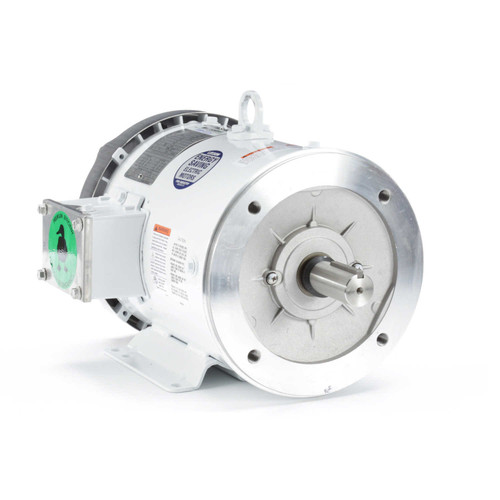

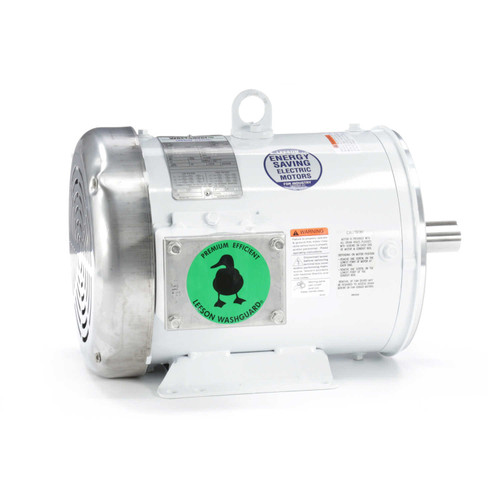

132199.00 Leeson | 3 hp 3600 RPM 182TC Frame TEFC 230/460 Volts Wash Down Duty
(No reviews)
Write a Review
Write a Review
Leeson
132199.00 Leeson | 3 hp 3600 RPM 182TC Frame TEFC 230/460 Volts Wash Down Duty
$1,664.05
$1,229.93
SKU
132199.00
UPC
6.92E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230/460V
Horsepower
3 HP
RPM
3600
Phase
Three Phase
Frame
182TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
7.6/3.8 Amps
Service Factor
1.25
Insulation Class
Class F
Mounting
Rigid Base
- 3 hp 3600 RPM, 7.6/3.8 amps 230/460 Volts 60hz. Three Phase Motor
- NEMA 182TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Leeson Washguard Motor - Rigid Base - Premium Efficient
- Service Factor: 1.25 - overload protection = None - Class F Insulation
- TEFC = Totally Enclosed Fan Cooled
- 1 Year Manufacture Warranty
Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.
C182T34WK1A, 132199.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230/460V |
| Horsepower | 3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 182TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 7.6/3.8 Amps |
| Service Factor | 1.25 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
