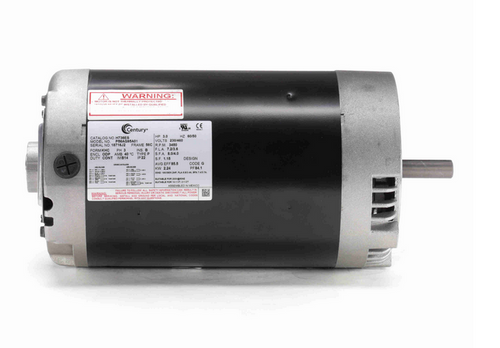

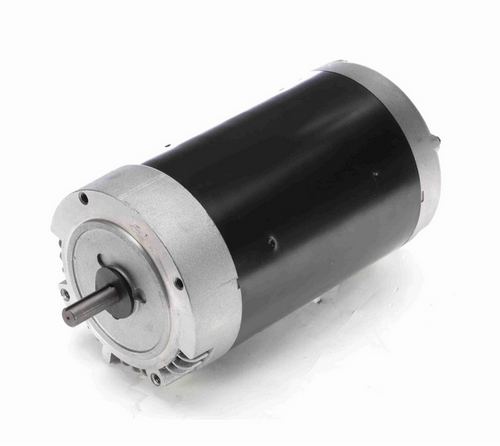

H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES
H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES
H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES
H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES
H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES
H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES
H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES
H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES

Century Electric Motor

H736ES Century 3 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 230/460V Century Pump Motor # H736ES

(No reviews) Write a Review
$871.59
$793.44
SKU H736ES
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 7.2/3.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting C-Face
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 7.2/3.6 amps 230/460 Volts 60 Hz 3-Phase
  • NEMA 56C frame, C-face, Keyed Steel Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = Auto
  • No Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

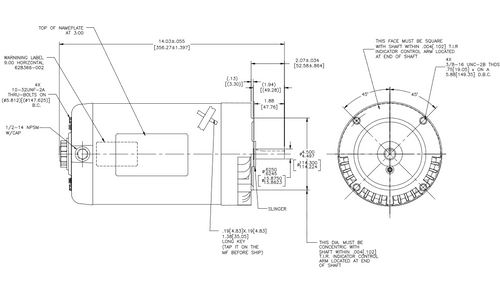

Motor for general purpose pump applications using three phase power with a C-face mount.  Threaded shaft, Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. H736ES

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 7.2/3.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting C-Face
!
