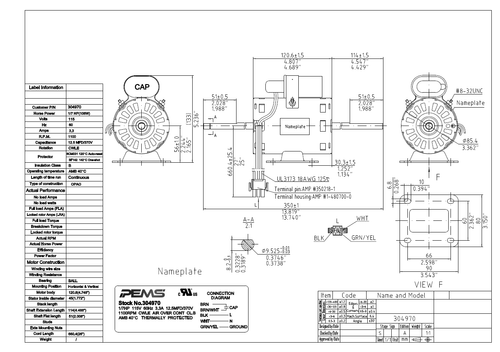

304970R PEMS 1/7 hp 1100 RPM 1-Speed 115V 3.3" Diameter OEM Replacement Motor

304970R PEMS 1/7 hp 1100 RPM 1-Speed 115V 3.3" Diameter OEM Replacement Motor

This PEMS Model 304970R is a direct drive commercial exhaust fan motor designed to replace compatible Greenheck and Fasco motors. It is ideal for HVACR applications requiring a reliable, clockwise-rotation motor with dual shaft configurations.

Key Specifications

• Horsepower: 1/7 hp
• RPM: 1100
• Voltage: 115V
• Amperage: 3.3 Amps
• Rotation: Clockwise (CWLE)
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a versatile layout supporting both horizontal and vertical mounting positions. It comes with 26" leads for easy electrical connections. Designed for continuous operation in a maximum 40°C ambient temperature, it utilizes an open protective air-over (OPAO) enclosure and features dual thermal protection via a 120°C auto-reset protector and a 142°C one-shot backup for safe performance.

Cross Reference

• S33G652NB-01, 7190-3617

Warranty

1 Year Manufacturer Warranty
