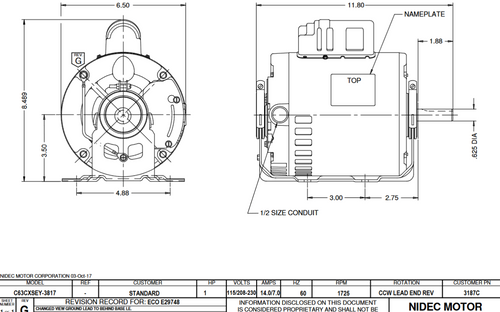

3187C Nidec 1 hp 1800 RPM 115/230V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor

3187C Nidec 1 hp 1800 RPM 115/230V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor

SKU:
3187C
Weight:
23.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $504.00
Now: $450.20
Adding to cart… The item has been added
  • 1 hp 1800 RPM (1 speed), 14.0/7.0 amps 115/230V Volts 60 Hz Capacitor Start Motor
  • 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 1 7/8"
  • Service Factor = 1.25, Overload Protection: Auto
  • Resilient Base Mount, Sleeve Bearings, Class B Insulation, Rev
  • 1 Year Manufacture Warranty

Belt Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof, C063SEY3817972B

!
