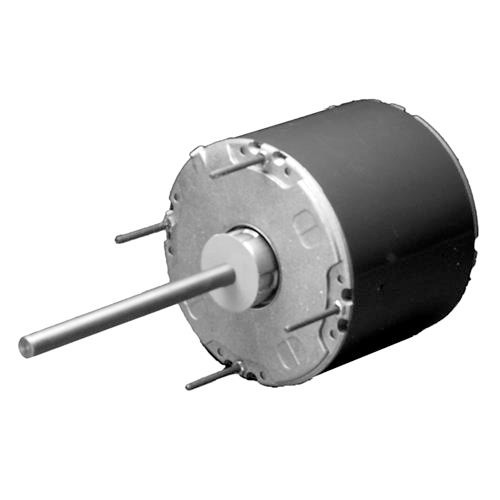

3566 Nidec 3/4 hp 1075 RPM 208-230V 6.5" Dia. (No Base) 1-Speed ODP Condenser Motor
3566 Nidec 3/4 hp 1075 RPM 208-230V 6.5" Dia. (No Base) 1-Speed ODP Condenser Motor
3566 Nidec 3/4 hp 1075 RPM 208-230V 6.5" Dia. (No Base) 1-Speed ODP Condenser Motor
3566 Nidec 3/4 hp 1075 RPM 208-230V 6.5" Dia. (No Base) 1-Speed ODP Condenser Motor
3566 Nidec 3/4 hp 1075 RPM 208-230V 6.5" Dia. (No Base) 1-Speed ODP Condenser Motor
3566 Nidec 3/4 hp 1075 RPM 208-230V 6.5" Dia. (No Base) 1-Speed ODP Condenser Motor

Nidec

3566 Nidec 3/4 hp 1075 RPM 208-230V 6.5" Dia. (No Base) 1-Speed ODP Condenser Motor

(No reviews) Write a Review
$717.60
$640.78
SKU 3566
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 3/4 HP
RPM 1075
Enclosure ODP
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 3.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
Adding to cart… The item has been added
Description
  • 3/4 hp 1075 RPM, 3.8 amps 208-230V Volts 60 Hz PSC Motor
  • NEMA 6.5" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 6"
  • Service Factor = 1, Overload Protection: Auto
  • Stud Mount, Ball Bearings, Class B Insulation, Rev
  • 1 Year Manufacture Warranty

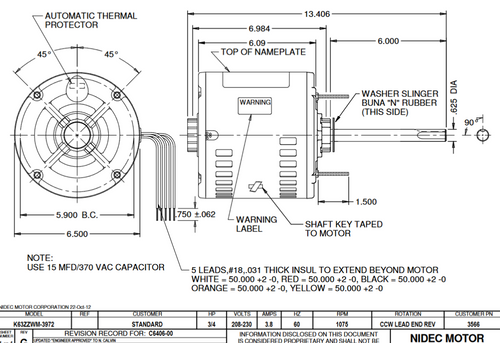

Replacement Condenser Fan Motor for certain brands. Wiring diagram on motor name plate. ODP = Open Drip Proof, K0630WM3972864B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 3/4 HP
RPM 1075
Enclosure ODP
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 3.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
!
