Nidec

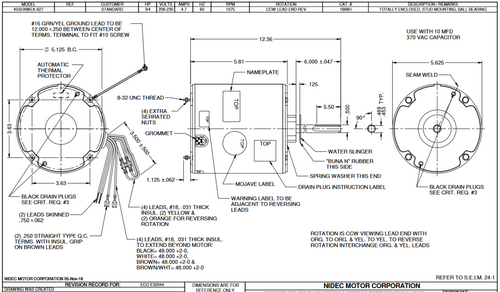

1868H Nidec 3/4 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
(No reviews)
Write a Review
Write a Review
Nidec
1868H Nidec 3/4 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
$158.70
$141.44
SKU
1868H
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230V
Horsepower
3/4 HP
RPM
1075
Enclosure
TEAO
Hertz
60 Hz
Type
PSC (Permanent Split Capacitor)
Amperage
4.7 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class F
Mounting
Stud
1868H Nidec 3/4 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
This 3/4 horsepower condenser fan motor is designed for HVAC applications, providing reliable performance in hot environments. It serves as a direct replacement for condenser motors requiring a 1-speed TEAO design without a base.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1075
- Voltage: 208-230V
- Amperage: 4.7 amps
- Enclosure: Totally Enclosed Air Over (TEAO) / Open Drip Proof
- Frame / Diameter: NEMA 5.6" diameter rolled steel frame
- Shaft Dimensions: 1/2" diameter x 5 1/2" length, flat shaft
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
The motor features a stud mount for secure installation and includes overload protection with an automatic reset. It is constructed with Class F insulation for durability in demanding environments. A wiring diagram is provided on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 208/230V |
| Horsepower | 3/4 HP |
| RPM | 1075 |
| Enclosure | TEAO |
| Hertz | 60 Hz |
| Type | PSC (Permanent Split Capacitor) |
| Amperage | 4.7 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class F |
| Mounting | Stud |
