3736H Nidec 1/4 hp 1075 RPM 460V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
3736H Nidec 1/4 hp 1075 RPM 460V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
3736H Nidec 1/4 hp 1075 RPM 460V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
3736H Nidec 1/4 hp 1075 RPM 460V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

Nidec

3736H Nidec 1/4 hp 1075 RPM 460V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

(No reviews) Write a Review
$133.40
$119.59
SKU 3736H
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/4 HP
RPM 1075
Enclosure TEAO
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Mounting Stud
Adding to cart… The item has been added
Description
  • 1/4 hp 1075 RPM, 0.8 amps 460V Volts 60 Hz PSC Motor
  • NEMA 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 5 1/2"
  • Service Factor = 1, Overload Protection: Auto
  • Stud Mount, Ball Bearings, Class F Insulation, Rev
  • 1 Year Manufacture Warranty

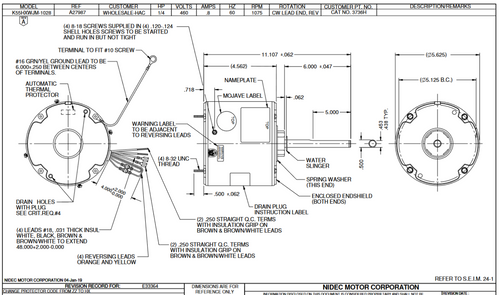

Condenser Fan Motor for hot environments. Wiring diagram on motor name plate. TEAO = Open Drip Proof, K055WJM1028014B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/4 HP
RPM 1075
Enclosure TEAO
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Mounting Stud
!
