Genteq

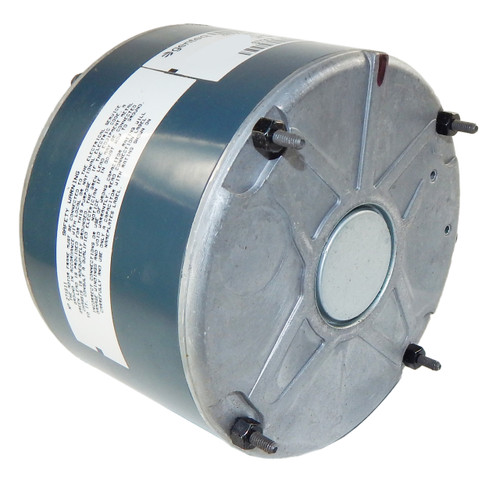

3915 Goodman Condenser Motor B13400348, 1/6 hp 810 RPM 208-230V Genteq
3915 Goodman Condenser Motor B13400348, 1/6 hp 810 RPM 208-230V Genteq
This Goodman condenser motor is a direct aftermarket replacement designed for various Goodman and GE air conditioning condenser models. It is ideal for HVAC applications requiring a reliable 1/6 horsepower motor with a 1-speed operation.
Key Specifications
- Horsepower: 1/6 hp
- RPM: 810
- Voltage: 208-230V
- Amperage: 1.1 amps
- Enclosure: TEAO (Totally Enclosed Air Over)
- Frame / Diameter: 5-5/8" body diameter
- Shaft Dimensions: 1/2" diameter x 2 1/2" length
- Rotation: Clockwise (CW) shaft end
- Bearings: Sleeve bearings
Product Features & Fitment
This motor replaces Goodman models B13400348, 0131M00060S, 0131M00016PS, S89-602, GE models 5KCP39GGY839S and related variants, as well as Dayton 6DLR0. It requires a 5 MFD/370VAC run capacitor (part #5DV) for proper operation, which is recommended to be replaced during installation. The motor features a stud mounting pattern of 5-1/4" x 5-1/4" and is rated for operation in ambient temperatures up to 40°.
Cross Reference
- the following models
- Goodman B13400348, 0131M00060S, 0131M00016PS, S89-602
- GE 5KCP39GGY839S, 5KCP39GGY637, 5KCP39GGY637S, 5KCP39BGV573AS, 5KCP39BGY916S, 5KCP39EFY622AS, 5KCP39EFY622
- Dayton 6DLR0
Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230V |
| Horsepower | 1/6 HP |
| RPM | 810 |
| Enclosure | TEAO |
| Amperage | 1.1 Amps |
| Bearings | Sleeve Bearings |
| Speeds | 1-Speed |
| Rotation | Clockwise |
- the following models
- Goodman B13400348, 0131M00060S, 0131M00016PS, S89-602
- GE 5KCP39GGY839S, 5KCP39GGY637, 5KCP39GGY637S, 5KCP39BGV573AS, 5KCP39BGY916S, 5KCP39EFY622AS, 5KCP39EFY622
- Dayton 6DLR0
