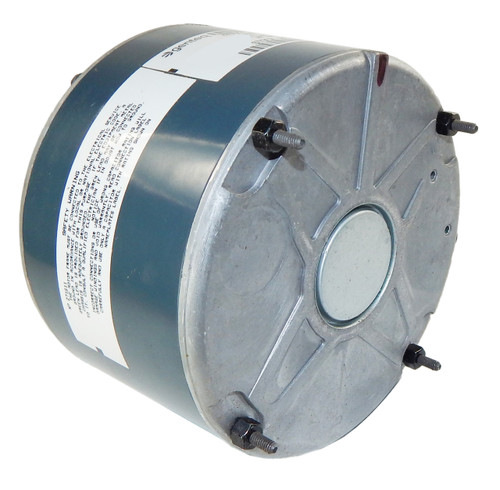

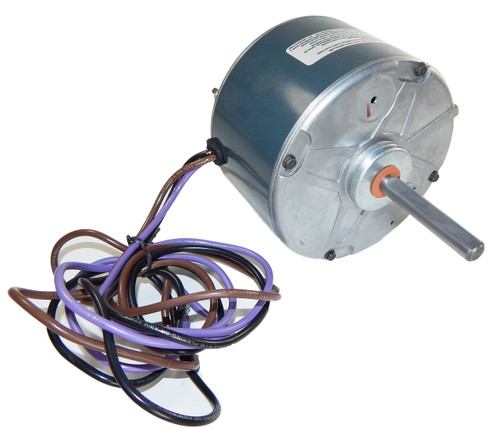

3S004 | Goodman Condenser Motor 1/12 hp, 825 RPM, 208-230V Genteq

3S004 | Goodman Condenser Motor 1/12 hp, 825 RPM, 208-230V Genteq

This 3S004 condenser motor is a direct aftermarket replacement manufactured by Genteq, designed for Goodman, Amana, and Janitrol air conditioning units. It is engineered to replace models such as GE 5KCP39CFY918S and Emerson K55HXBGZ-6027, providing reliable performance in HVAC condenser applications.

Key Specifications

• Horsepower: 1/12 hp
• RPM: 825
• Voltage: 208-230V
• Amperage: 0.60 amps
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 5-5/8" body diameter
• Shaft Dimensions: 1/2" diameter x 2.25" length
• Rotation: Counterclockwise (CCW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This 1-speed motor operates at 40° ambient temperature and requires a 5 MFD/370VAC run capacitor (part #5DV recommended) for proper function. The motor case length is 4" with a stud mounting pattern of 5-1/4" on center, ensuring compatibility with specified replacement models. It is advised to replace the run capacitor when installing this motor to maintain optimal performance.

Cross Reference

• GE 5KCP39CFY918S, 5KCP39CFS300CS
• Emerson K55HXBGZ-6027
• Goodman 10584301, 10584304, 10584307
• Dayton 6DLP8
• Genteq 3S004

Warranty

1 Year Manufacturer Warranty
