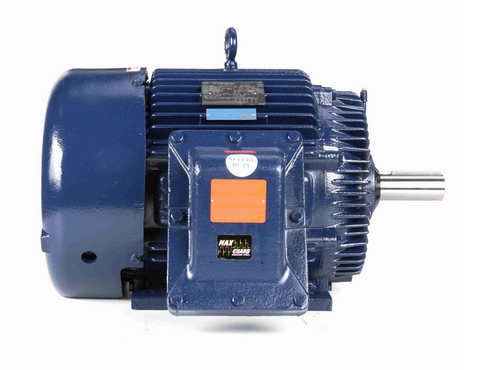

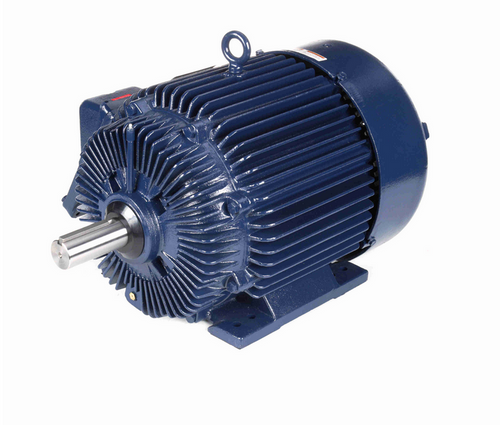

E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor
E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor
E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor
E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor
E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor
E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor
E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor
E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor

Marathon

E567-P Marathon 40 hp 1800 RPM 3-Phase 324T Frame TEFC (rigid base) 230/460V Marathon Motor

(No reviews) Write a Review
$6,210.00
$5,572.84
SKU ME567-P
UPC 7.23E+11
Availability Subject to Availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324T
Enclosure TEFC
Hertz 60 Hz
Amperage 95.0/47.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description



  • 40 hp 1800 RPM, 95.0/47.5 amps 230/460 Volts 60 Hz. 3-Phase
  • NEMA 324T cast iron frame, Keyed Shaft 2 1/8" Diameter x 5 1/4"
  • Service Factor: 1.15, Overload protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • BEARING CURRENT PROTECTION
  • 1 Year Manufacture Warranty

Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR C&D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.  324TTGS16541

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324T
Enclosure TEFC
Hertz 60 Hz
Amperage 95.0/47.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
