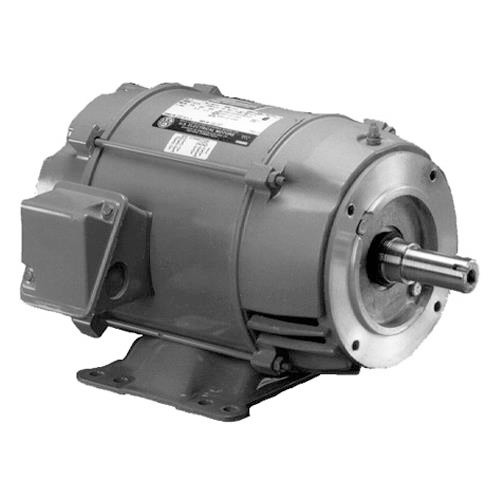

D40P2D Nidec | 40 hp 1800 RPM 324T Frame 208-230/460V ODP Electric Motor

This general-purpose, three-phase electric motor is designed for continuous duty applications requiring reliable performance and premium efficiency. It is suitable for replacing or upgrading existing motors with similar specifications in industrial and commercial HVAC systems.

Key Specifications

• Horsepower: 40 hp
• RPM: 1800
• Voltage: 208-230/460V
• Amperage: 91.0/46.1 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 324T Frame
• Shaft Dimensions: Keyed shaft, 2 1/8" diameter x 4 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for secure installation and includes Class F insulation for enhanced thermal protection. It operates efficiently at a 40°C ambient temperature and supports both 50/60 Hz power supplies. Wiring diagrams are conveniently located on the motor nameplate to assist with proper electrical connections. This model does not include overload protection and has a service factor of 1.15.

Warranty

1 Year Manufacturer Warranty
