D50P2D Nidec | 50 hp 1800 RPM 326T Frame 208-230/460V ODP Electric Motor

This 50 hp, 1800 RPM three-phase electric motor from Nidec is designed for general-purpose industrial applications requiring reliable continuous duty performance. It serves as a premium efficient replacement motor compatible with various equipment needing a NEMA 326T frame.

Key Specifications

• Horsepower: 50 hp
• RPM: 1800
• Voltage: 208-230/460V
• Amperage: 113.0/56.0 amps
• Enclosure: Open Drip Proof (ODP)

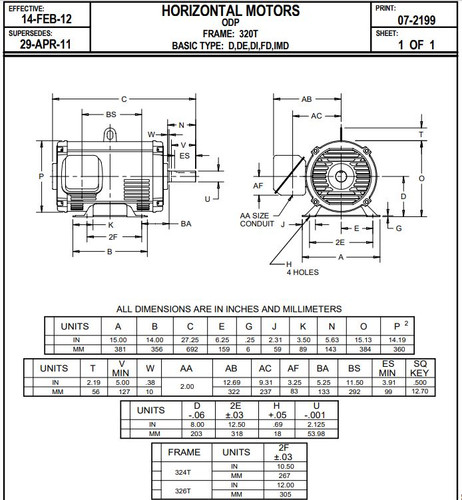

• Frame / Diameter: NEMA 326T Frame
• Shaft Dimensions: Keyed shaft, 2 1/8" diameter x 4 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and Class F insulation suitable for 40°C ambient temperatures. It includes a wiring diagram on the motor nameplate for straightforward installation. The motor has a service factor of 1.15 but does not include overload protection.

Warranty

1 Year Manufacturer Warranty
