D30P3D Nidec | 30 hp 1200 RPM 326T Frame 208-230/460V ODP Electric Motor Nidec
D30P3D Nidec | 30 hp 1200 RPM 326T Frame 208-230/460V ODP Electric Motor Nidec
D30P3D Nidec | 30 hp 1200 RPM 326T Frame 208-230/460V ODP Electric Motor Nidec
D30P3D Nidec | 30 hp 1200 RPM 326T Frame 208-230/460V ODP Electric Motor Nidec

Nidec

D30P3D Nidec | 30 hp 1200 RPM 326T Frame 208-230/460V ODP Electric Motor Nidec

(No reviews) Write a Review
$3,174.00
$2,833.72
SKU D30P3D
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 30 HP
RPM 1200
Phase Three Phase
Frame 326T
Enclosure ODP
Amperage 70.0/35.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 30 hp 1200 RPM, 70.0/35.0 amps 208-230/460V Three Phase
  • NEMA 326T Frame Keyed Shaft 2 1/8" Diameter x 4 1/4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

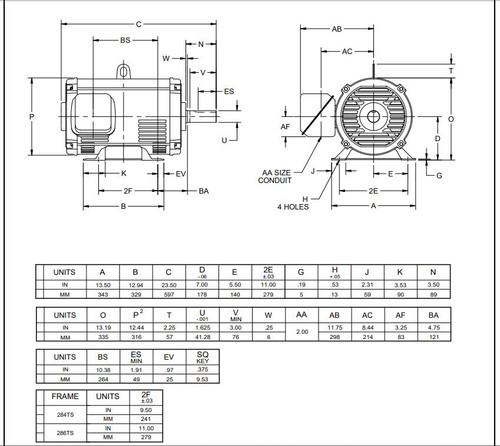

  • "C" Dimension 27.3"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DC26

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 30 HP
RPM 1200
Phase Three Phase
Frame 326T
Enclosure ODP
Amperage 70.0/35.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
