D7P3D Nidec | 7.5 hp 1200 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
D7P3D Nidec | 7.5 hp 1200 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
D7P3D Nidec | 7.5 hp 1200 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
D7P3D Nidec | 7.5 hp 1200 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec

Nidec

D7P3D Nidec | 7.5 hp 1200 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec

(No reviews) Write a Review
$1,289.15
$1,150.81
SKU D7P3D
UPC 6.63E+11
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 7-1/2 HP
RPM 1200
Phase Three Phase
Frame 254T
Enclosure ODP
Amperage 18.9/9.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 7.5 hp 1200 RPM, 18.9/9.5 amps 208-230/460V Three Phase
  • NEMA 254T Keyed Shaft 1-5/8" Diameter x 4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

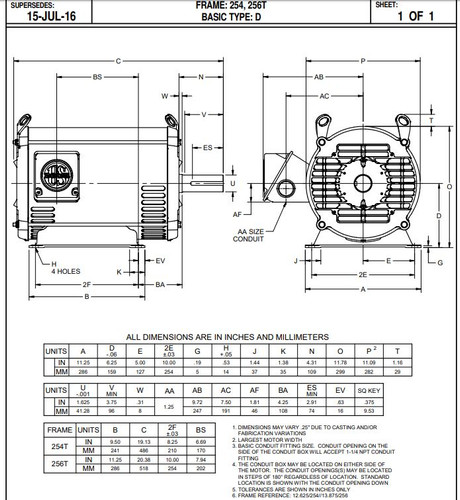

  • "C" Dimension 19.1"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FP79

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 7-1/2 HP
RPM 1200
Phase Three Phase
Frame 254T
Enclosure ODP
Amperage 18.9/9.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
