D20P1D Nidec | 20 hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
D20P1D Nidec | 20 hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
D20P1D Nidec | 20 hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
D20P1D Nidec | 20 hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec

Nidec

D20P1D Nidec | 20 hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec

(No reviews) Write a Review
$1,271.90
$1,135.97
SKU D20P1D
UPC 6.63E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 254T
Enclosure ODP
Hertz 50/60 Hz
Amperage 36.0/18.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Cross Reference 4GZC6 Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
Adding to cart… The item has been added
Description

D20P1D Nidec 20 hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor

This general-purpose three-phase electric motor is designed for continuous duty applications requiring reliable and efficient performance. It is suitable for replacing or upgrading existing motors with similar specifications in industrial and HVAC systems.

Key Specifications

  • Horsepower: 20 hp
  • RPM: 3600
  • Voltage: 208-230/460V
  • Amperage: 36.0/18.0 amps
  • Enclosure: Open Drip Proof (ODP)

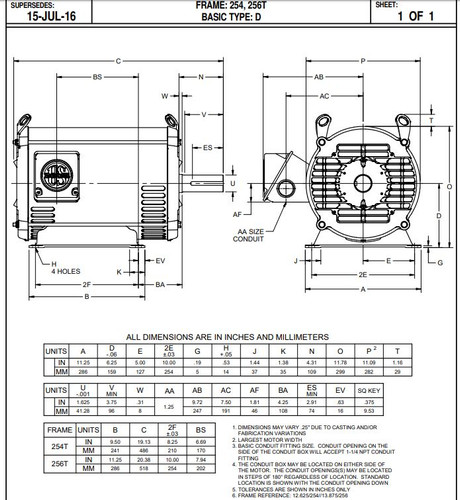

  • Frame / Diameter: NEMA 254T Frame, "C" Dimension 22.6"
  • Shaft Dimensions: Keyed Shaft, 1-5/8" Diameter x 4" Length
  • Rotation: Reversible
  • Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes Class F insulation for enhanced thermal protection. It operates efficiently at ambient temperatures up to 40°C and is designed with a service factor of 1.15. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty

Warranty Information
1 Year Manufacturer Warranty
Specifications
Voltage 208/230/460V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 254T
Enclosure ODP
Hertz 50/60 Hz
Amperage 36.0/18.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Cross References

4GZC6 Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries

!
