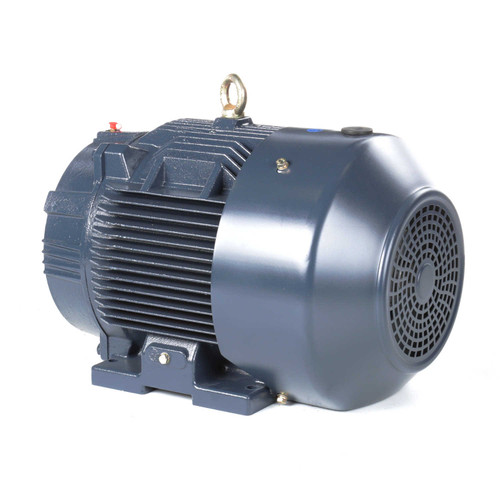

GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

Marathon

GT1234A Marathon 40 hp 1800 RPM 324TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

(No reviews) Write a Review
$3,123.00
$2,689.95
SKU GT1234A
Availability LIMITED STOCK
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
STATUS IN STOCK
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324TC
Enclosure TEFC
Hertz 60 Hz
Amperage 95.0/47.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description

Motor Discontinued

  • 40 hp 1800 RPM, 95.0/47.5 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 324TC Frame Keyed Shaft 2 1/8 " Diameter x 4 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

324TTFCD6028 Replaces Leeson C324T17FK5A, 171593.60, 171593.00, B199068.00, 199068.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
STATUS IN STOCK
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324TC
Enclosure TEFC
Hertz 60 Hz
Amperage 95.0/47.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
