4936 Nidec 1 hp 1140 RPM 575V 56YZ Frame (Rigid Base) 1-Speed TEAO 3-Phase Commercial Motor
4936 Nidec 1 hp 1140 RPM 575V 56YZ Frame (Rigid Base) 1-Speed TEAO 3-Phase Commercial Motor
4936 Nidec 1 hp 1140 RPM 575V 56YZ Frame (Rigid Base) 1-Speed TEAO 3-Phase Commercial Motor
4936 Nidec 1 hp 1140 RPM 575V 56YZ Frame (Rigid Base) 1-Speed TEAO 3-Phase Commercial Motor

Nidec

4936 Nidec 1 hp 1140 RPM 575V 56YZ Frame (Rigid Base) 1-Speed TEAO 3-Phase Commercial Motor

(No reviews) Write a Review
$593.40
$530.15
SKU 4936
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 1 HP
RPM 1140
Phase Three Phase
Frame 56YZ
Enclosure TEAO
Hertz 60 Hz
Amperage 1.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1140 RPM, 1.5 amps 575V Volts 60 Hz 3-Phase Motor
  • NEMA 56YZ Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 3" long
  • Service Factor = 1.0, Overload Protection: Auto
  • Base Mount, Ball Bearings, Class B Insulation, Rev
  • 1 Year Manufacture Warranty

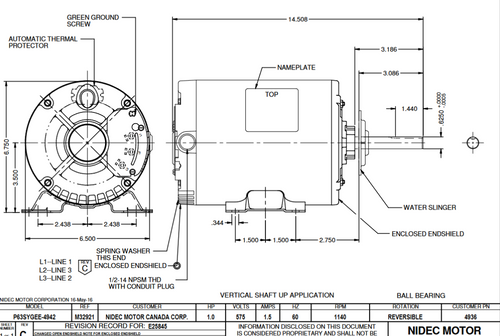

Commercial Condenser Fan Motor. Wiring diagram on motor name plate. TEAO = Totally-Enclosed Air-Over, P063GEE4942015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 1 HP
RPM 1140
Phase Three Phase
Frame 56YZ
Enclosure TEAO
Hertz 60 Hz
Amperage 1.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Rigid Base
!
