- 5-7 hp 3450 RPM, 26.8 amps, 230 Volts, 60hz.; Single Phase
- 182TZ Frame, Shaft 3.5" x 1-1/8" with Key
- Keyed shaft with 1/4- 20 UNC tapped hole in end
- 40C Ambient Class F Insulation; Ball Bearings
- Overload Protection; Service Factor 1.0
- One Year Manufacture Warranty
These motors MUST BE IN THE AIR FLOW-or you will burn the motor up. NOT designed to drive a belt - or pump. Open air over, fan-on-shaft design motors for crop drying applications. Designed for continuous duty operation. Class F insulation system. Extra nameplate included for remote mounting. Capacitors supplied on single phase models. All models include sealed bearings, rodent screens, gray epoxy paint and 34" leads exiting the motor at 12 0'clock. Keyed shaft with 1/4-20 UNC tapped hole on end; Overload protected, 34" long leads; Capacitors shipped. Motor venting protected against insects and rodents.

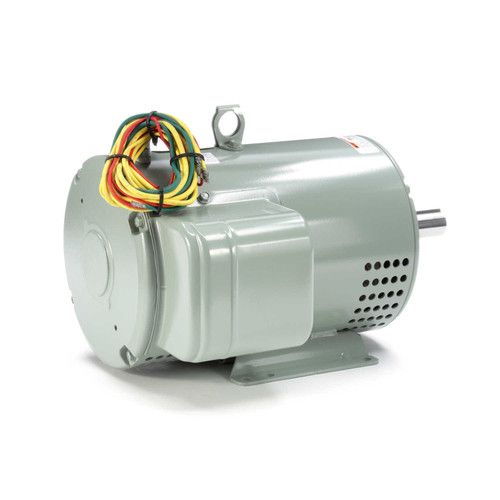

Model C182C34DB2B; 131847.00
