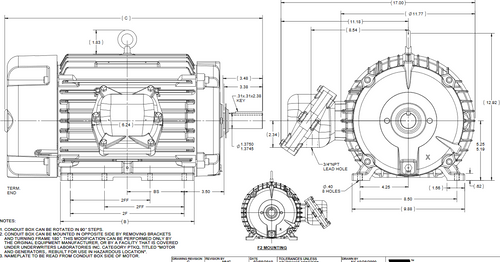

U043B Marathon 5 hp 1200 RPM 3-Phase 215T Frame TEFC (rigid base) 230/460V Marathon Motor
(No reviews)
Write a Review
Write a Review
Marathon
U043B Marathon 5 hp 1200 RPM 3-Phase 215T Frame TEFC (rigid base) 230/460V Marathon Motor
$2,558.98
$2,190.75
SKU
MU043B
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
5 HP
RPM
1200
Phase
Three Phase
Frame
215T
Enclosure
TEFC
Hertz
60 Hz
Amperage
13.8/6.9 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 5 hp 1200 RPM, 13.8/6.9 amps 230/460 Volts 60 Hz. 3-Phase
- NEMA 215T cast iron frame, Keyed Shaft 1 3/8" Diameter x 3 3/8"
- Service Factor: 1.15, Overload protection = Thermostat
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 215TTGND6576
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 5 HP |
| RPM | 1200 |
| Phase | Three Phase |
| Frame | 215T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 13.8/6.9 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
