131578.00 Leeson | 5 hp 1440 RPM 184T Frame TEFC Rigid Base 220V 50hz.

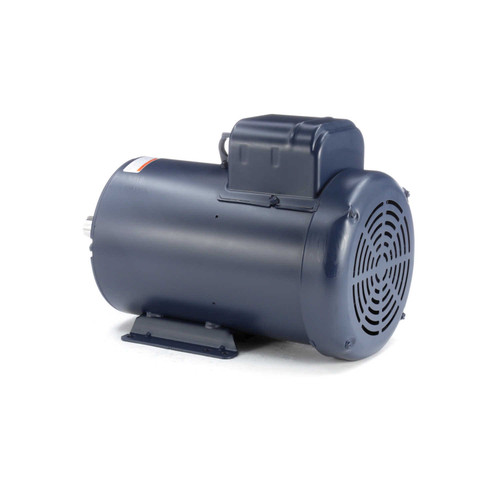

131578.00 Leeson 5 hp 1440 RPM 184T Frame TEFC Rigid Base Motor

This Leeson motor is a 5 horsepower, 1440 RPM unit designed for 220V 50 Hz power systems. It is ideal for industrial applications requiring a rigid base mount and a totally enclosed fan-cooled (TEFC) design.

Key Specifications

• Horsepower: 5 hp
• RPM: 1440
• Voltage: 220V 50 Hz
• Amperage: 21.0 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

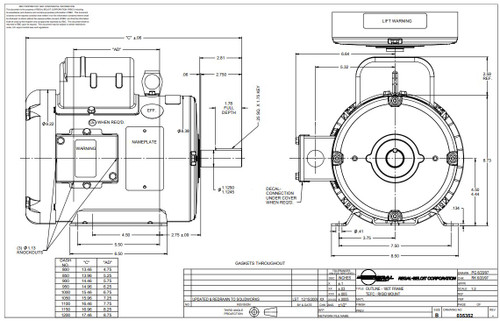

• Frame / Diameter: NEMA 184T Frame
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount suitable for stable installation in various industrial settings. It includes a keyed shaft for secure coupling and is built with Class F insulation for enhanced durability. Note that this motor is specifically rated for 50 Hz operation and will not function properly on 60 Hz power systems; using it on 60 Hz may cause damage.

Warranty

1 Year Manufacturer Warranty
