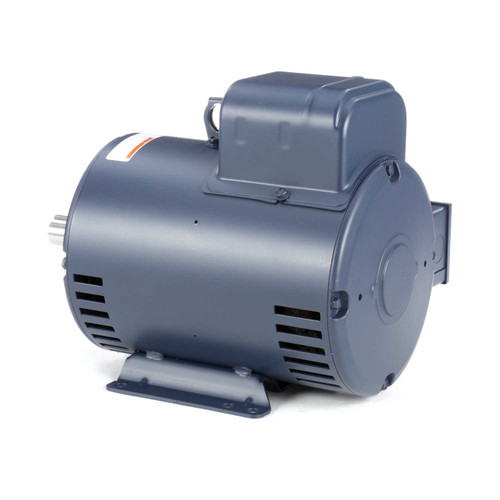

131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip
131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip
131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip
131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip
131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip
131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip
131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip
131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip

Leeson

131622.00 Leeson | 5 hp 1725 RPM 184T Frame 208-230 Volts Open Drip

(No reviews) Write a Review
$1,276.95
$1,064.79
SKU 131622.00
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 208/230V
Horsepower 5 HP
RPM 1725
Phase Single Phase
Frame 184T
Enclosure ODP
Hertz 60 Hz
Amperage 21.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 1725 RPM, 21.0 amps 208-230 Volts 60hz. single Phase Motor
  • NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = Manual
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

P184K17DB33A, 131622.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 208/230V
Horsepower 5 HP
RPM 1725
Phase Single Phase
Frame 184T
Enclosure ODP
Hertz 60 Hz
Amperage 21.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
