Marathon

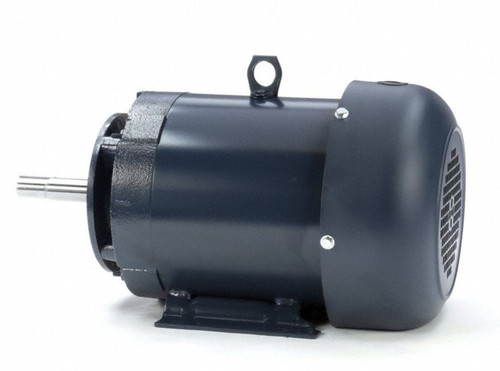

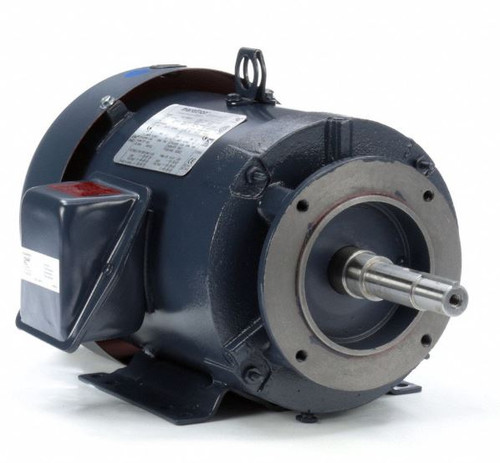

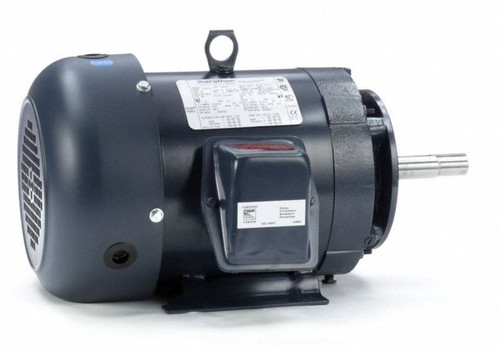

GT3113A Marathon 5 hp 1800 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT3113A Marathon 5 hp 1800 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
$1,123.55
$786.60
SKU
MGT3113
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
5 HP
RPM
1800
Phase
Three Phase
Frame
184JM
Enclosure
TEFC
Hertz
60 Hz
Amperage
13.0/6.5 Amps
Bearings
Ball Bearings
Insulation Class
Class F
Mounting
Rigid Base
Duty
Continuous duty
- 5 hp 1800 RPM, 13.0/6.5 amps 230/460V 60hz Three Phase Motor
- 184JM Frame
- Close Coupled Pump Motor - Rigid Base
- Totally Enclosed Fan cooled (TEFC) - Service Factor = 1.15
- Class F Insulation, Ball Bearings
- Continuous duty
- One Year Manufacture Warranty
Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.
184TTFBD6031 Replaces 199769.00, 199769, B199769.00, B199769; Dayton 52NU17
| Voltage | 230/460V |
|---|---|
| Horsepower | 5 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 184JM |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 13.0/6.5 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Duty | Continuous duty |
