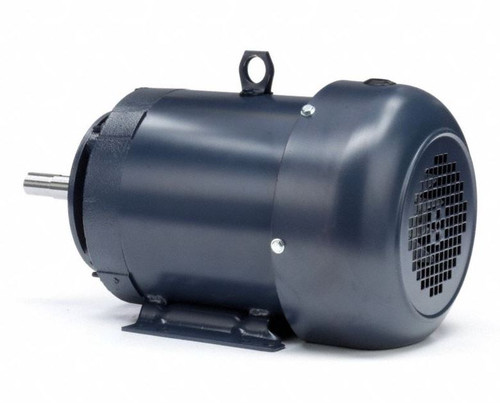

GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor
GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor

Marathon

GT3112A Marathon 5 hp 3600 RPM 184JM Frame TEFC 230/460V Marathon Close Couple Motor

(No reviews) Write a Review
$1,171.05
$1,002.80
SKU MGT3112
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 184JM
Enclosure TEFC
Hertz 60 Hz
Amperage 12.4/6.2 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
Adding to cart… The item has been added
Description
  • 5 hp 3600 RPM 184JM Frame, 12.4/6.2 amps 230/460V 60hz Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Totally Enclosed Fan cooled (TEFC) - Service Factor = 1.15
  • Class F Insulation, Ball Bearings
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

184TTFBD6006 Replaces 199768.00, 199768, B199768.00, B199768; Dayton 52NU15

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 184JM
Enclosure TEFC
Hertz 60 Hz
Amperage 12.4/6.2 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
!
