D5P2D Nidec 5 hp 1800 RPM 184T Frame 208-230/460V ODP Electric Motor

This Nidec general-purpose electric motor delivers 5 horsepower at 1800 RPM and is designed for three-phase applications requiring reliable continuous duty performance. It is a premium efficient motor suitable for various industrial and HVAC uses, replacing models such as HD98 and Dayton 263R11.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 208-230/460V
• Amperage: 13.7-12.4/6.2 amps
• Enclosure: Open Drip Proof (ODP)

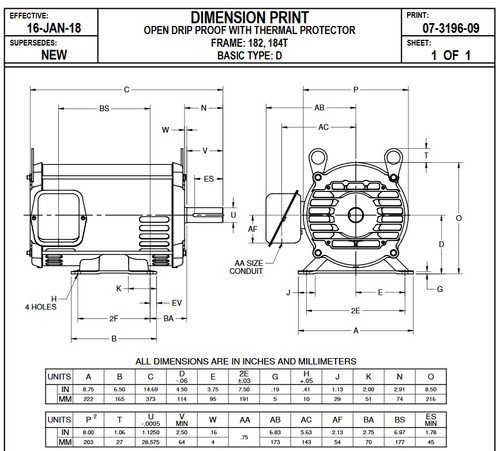

• Frame / Diameter: NEMA 184T
• Shaft Dimensions: 1-1/8" diameter x 2 3/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and designed to operate in ambient temperatures up to 40°C. Wiring diagrams are provided on the motor nameplate for ease of setup. Note that overload protection is not included.

Warranty

1 Year Manufacturer Warranty
