sale
Leeson
131537.00 Leeson | 5 hp 1800 RPM 184T Frame ODP 230V
(No reviews)
Write a Review
Write a Review
Leeson
131537.00 Leeson | 5 hp 1800 RPM 184T Frame ODP 230V
$750.00
$595.00
SKU
131537.00
Availability
IN STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230V
Horsepower
5 HP
RPM
1800
Phase
Single Phase
Frame
184T
Enclosure
ODP
Hertz
60 Hz
Amperage
21.0 Amps
Bearings
Ball Bearings
Service Factor
1.15

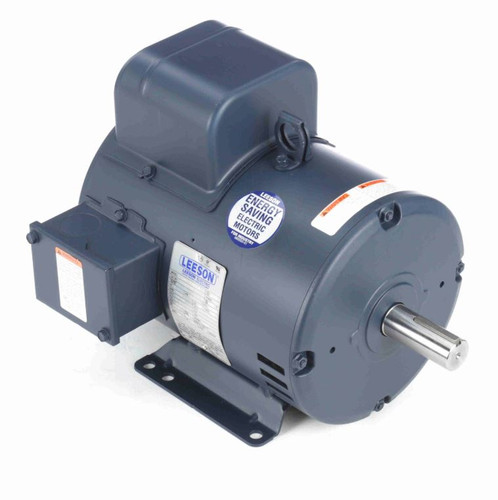

131537.00 Leeson | 5 hp 1800 RPM 184T Frame ODP 230V Electric Motor
This standard 5 horsepower general purpose electric motor operates at 1800 RPM and is designed for single-phase 208-230V applications. It is suitable for replacing three-phase 5 hp motors with a single-phase option and is commonly used in air compressors, sprayers, and various other industrial applications.
Key Specifications
- Horsepower: 5 hp
- RPM: 1800
- Voltage: 208-230V, Single Phase
- Amperage: 21.0 amps
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 184T
- Shaft Dimensions: 1 1/8" diameter x 2 3/4" length
- Rotation: Electrically Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a capacitor start and capacitor run design with a service factor of 1.15. It includes a standard 184T flat mounting base for easy installation. The overall motor length is 14.69 inches, ensuring compatibility with existing setups requiring this frame size. This motor does not include overload protection.
Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230V |
| Horsepower | 5 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 184T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 21.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
