131540.00 Leeson | 5 hp 1800 RPM 184TC Frame TEFC C-Face (no base) 230V

SKU:
131540
Weight:
107.00 LBS
Shipping:
Calculated at Checkout
Was: $1,604.00
Now: $1,202.20
Adding to cart… The item has been added
  • 5 hp 1800 RPM, 23.0 amps 230 Volts 60hz. single Phase Motor
  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.0 - overload protection = None
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

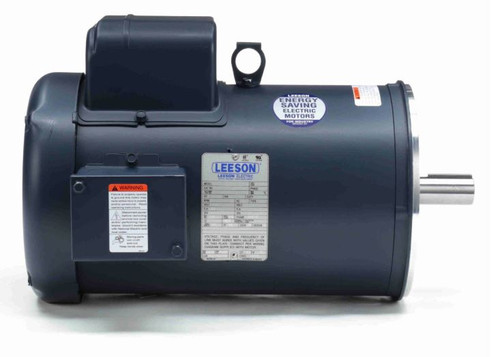

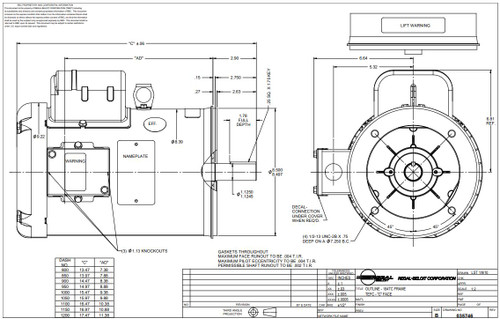

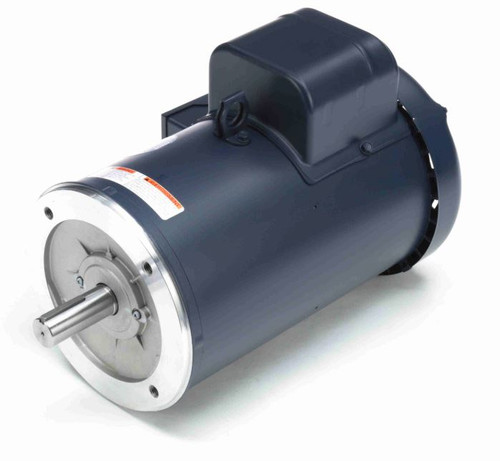

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C184K17FC6D, 131540.00
